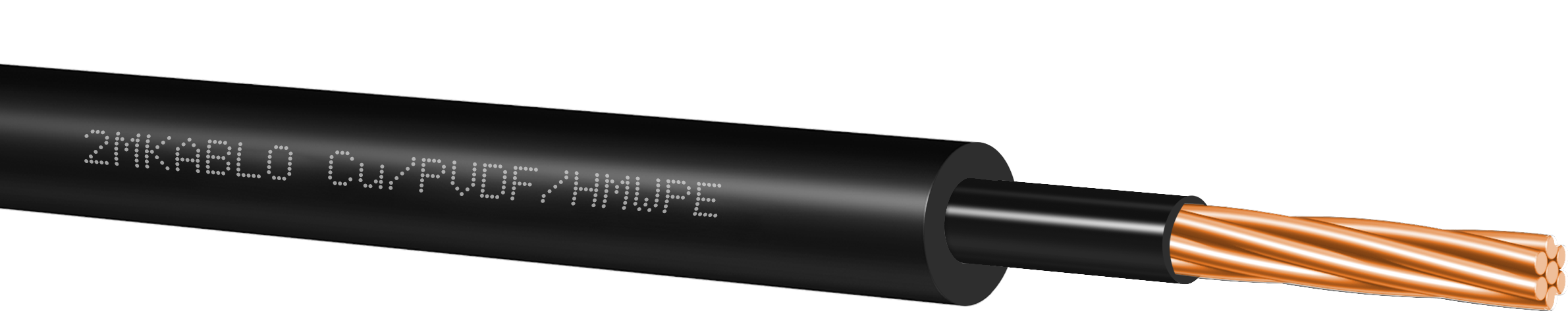

Cu/PVDF/HMWPE
SHARE
Product Certificates
You can click to download our certificates.
Areas of Use
Positive Cable is electrically connected (directly or indirectly) to the positive output terminal of an ICCP power supply, including impressed current anode cables. CP Cable is used as direct earth burial DC feeder cable in cathodic protection systems.
Cable Construction
- Conductor Stranded Annealed Copper (IEC/EN 60228, Class 2)
- Insulation Polyvinylidene Fluoride (PVDF) (Black)
- Outer Sheath High Molecular Weight Polyethylene (Black) Acc. to ASTM D1248 Type 3, Class C, Category 5, IEC 60502, ST7
- Reference Standards 17-SAMSS-017
Technical Properties
- Operating Voltage 0.6/1 kV
- Test Voltage 3.5 kV
- Temperature Range Operation: -30°C...+90°C, Installation: -5°C...+70°C
- Conductor Resistance IEC/EN 60228
- Min. Bending Radius 10 x Cable Diameter
Footnote
*Out of 17-SAMSS-017 scope, based on 17-SAMSS-017
*All values have ±5% tolerance
