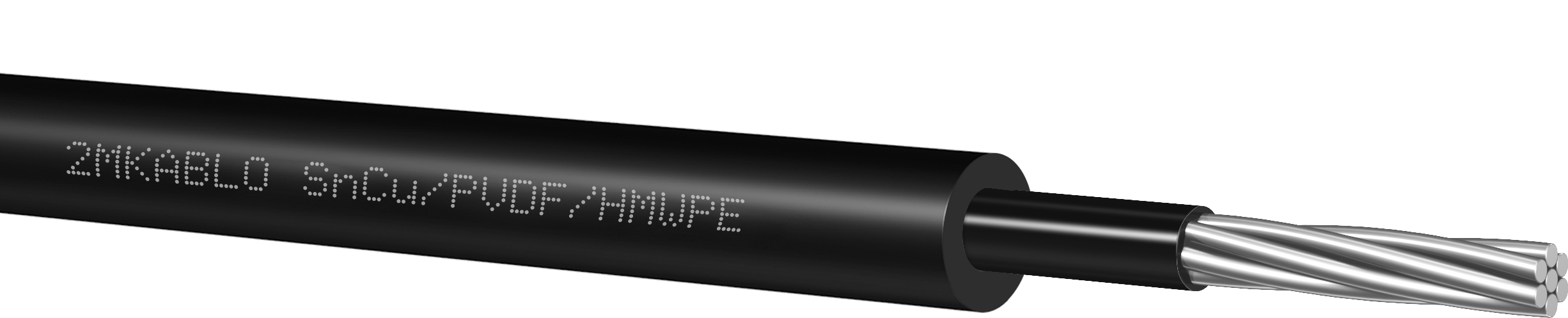

SnCu/PVDF/HMWPE
SHARE
Product Certificates
You can click to download our certificates.
Areas of Use
CP Cable is used as direct earth burial DC feeder cable in cathodic protection systems to protect against galvanic and electrolytic corrosion of metallic objects - such as storage tanks, pipelines, wells and ocean vessels - that are buried or submerged in water.
Cable Construction
- Conductor Stranded Annealed Tinned Copper (IEC 60228, Class 2)
- Insulation Polyvinylidene Fluoride (PVDF) (Black)
- Outer Sheath High Molecular Weight Polyethylene (Black) Acc. to ASTM D1248 Type 3, Class C, Category 5, IEC 60502, ST7
- Reference Standards 17-SAMSS-017
Technical Properties
- Operating Voltage 0.6/1 kV
- Test Voltage 3.5 kV
- Temperature Range Operation: -30°C...+90°C, Installation: -5°C...+70°C
- Conductor Resistance IEC/EN 60228
- Min. Bending Radius 10 x Cable Diameter
Footnote
*Out of 17-SAMSS-017 scope, based on 17-SAMSS-017
*All values have ±5% tolerance
