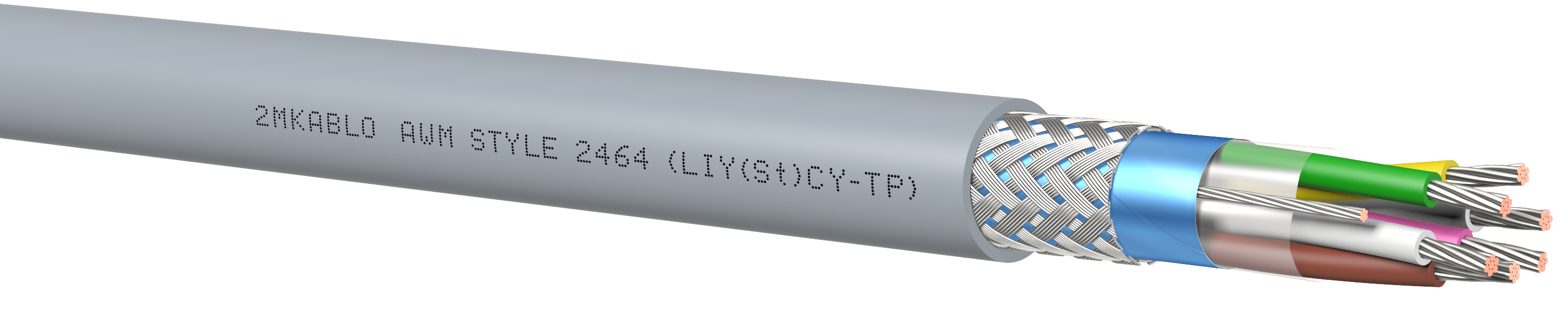

STYLE 2464 (LIY(St)CY-TP)
CY-TP_3x2x16AWG.png)
SHARE
Product Certificates
You can click to download our certificates.
Areas of Use
Multiple-conductor cable using non-integral jacket. These double screened cables are used as signal transmission cables in industrial applications. These can be easily used with their flexible construction in narrow applications like electronic control systems of computer or audio systems or the communication sector, electronic circuits, measurement devices, machine design, office equipment, etc. These used for indoor applications. Screening protects the cable from the outer electrical effects.
Cable Construction
- Conductor Stranded Annealed Tinned Copper (ASTM B-33)
- Insulation PVC (80°C) UL 1581
- Core Colors Can be manufactured according to the customer’s request
- Insulated Conductors AWG16 & AWG22 Style 1095
- Lay-up Cores are twisted as pairs and pairs are stranded in layers
- Separator PET Foil
- Overall Screen Al-PET Foil (with 7x0.3 mm Stranded Tinned Copper)
- 2. Overall Screen Tinned Copper Wire Braid
- Outer Sheath PVC Jacket (UL 1581 Class 80°C). The thickness of the overall jacket is in accordance with the UL 758.
- Reference Standards UL Style 1095, UL 758
Technical Properties
- Operating Voltage 300 V
- Test Voltage 2 kV
- Conductor Resistance UL 1581 - Section 220
- Max. Operating Temperature Fixed: -30°C … +80°C / Flexible: -5°C … +50°C
- Flame Retardancy FT2 Horizontal Flame Test (UL 2556), VW-1 Flame Test (UL 2556), IEC/EN 60332-1
- Conductor Corrosion UL 2556
- Deformation Resistance UL 2556
- Min. Bending Radius (Fixed) 8 x Cable Diameter
