Used as fixed installation cable in marine vehicles. Halogen-Free and Flame Retardant construction ensure non-corrosive and highly visible environment during a fire.

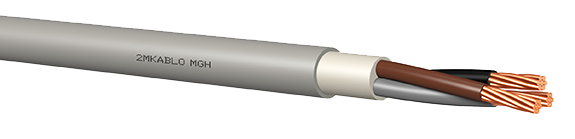

Cable Construction
ConductorStranded Annealed Tinned Copper (IEC 60228, Class 2)
InsulationHEPR (IEC 60092-360)
Core ColorsAccording to HD 308 S2 (# of Cores ≥5 => White numbered)
SeparatorPET Foil (HFFR filler upon request)
Outer SheathHFFR (IEC 60092-360 SHF1), RAL 9005 - Black or RAL 7001 - Grey
Reference StandardsIEC 60092-353
Technical Properties
Operating Voltage0.6/1 (1.2) kV
Test Voltage3.5 kV (a.c.) 8.4 kV (d.c)
Conductor ResistanceIEC/EN 60228
Insulation Resistance>5000 M.Ωxkm
Temperature Range-40 °C........+90 °C
Flame RetardancyIEC/EN 60332-1-2, IEC/EN 60332-3-22 (CAT A)
